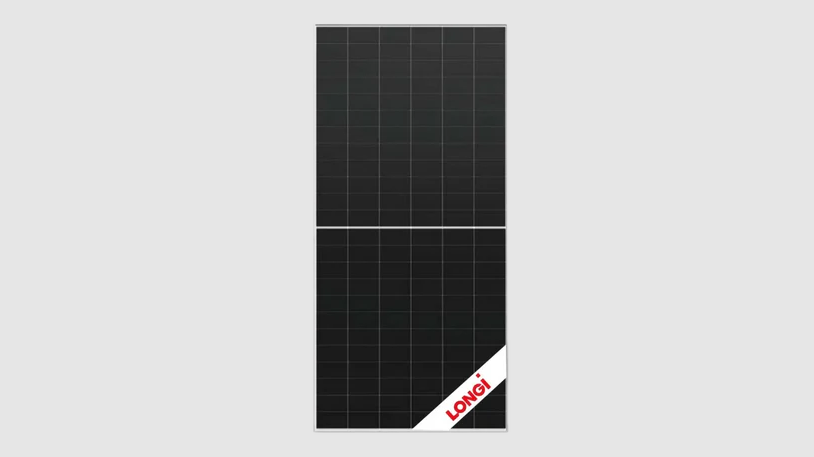

LONGI HIMO Panel 645W bifacial Longi Himo 10 645W

Mechanical Parameters Cell Orientation 144 (6×24) Junction Box IP68, three diodes Output Cable 4mm2, +400, -200mm/±1400mm length can be customized Glass Dual glass, 2.0+2.0mm semi-tempered glass Frame Anodized aluminum alloy frame Weight 33.5kg Dimension 2382×1134×30mm Electrical Characteristics STC : AM1.5 1000W/m2 25℃ NOCT : AM1.5 800W/m2 20℃ 1m/s Test uncertainty for Pmax: ±3% Module Type LR7-72HVD-645M Testing Condition STC NOCT Maximum Power (Pmax/W) 645 491.0 Open Circuit Voltage (Voc/V) 53.70 51.03 Short Circuit Current (Isc/A) 15.17 12.18 Voltage at Maximum Power (Vmp/V) 44.56 42.35 Current at Maximum Power 14.48 11.61 (Imp/A) Module Efficiency(%) 23.9 Operating Parameters Operational Temperature -40℃ ~ +85℃ Power Output Tolerance 0 ~ 3% Maximum System Voltage DC1500V (IEC/UL) Maximum Series Fuse Rating 30A Nominal Operating Cell Temperature 45±2℃ Protection Class Class II Bifaciality 70±5% Fire Rating UL type 29 , EC Class C Mechanical Loading Front Side Maximum Static Loading 5400Pa Rear Side Maximum Static Loading 2400Pa Hailstone Test 25mm Hailstone at the speed of 23m/s Temperature Ratings (STC) Temperature Coefficient of Isc +0.050%/℃ Temperature Coefficient of Voc -0.200%/℃ Temperature Coefficient of Pmax -0.260%/℃
