ASUS TUF Gaming Z890-Pro Wi-Fi DDR5 LGA1851 ATX Motherboard | 90MB1IR0-M0CAY0 Z890-Pro

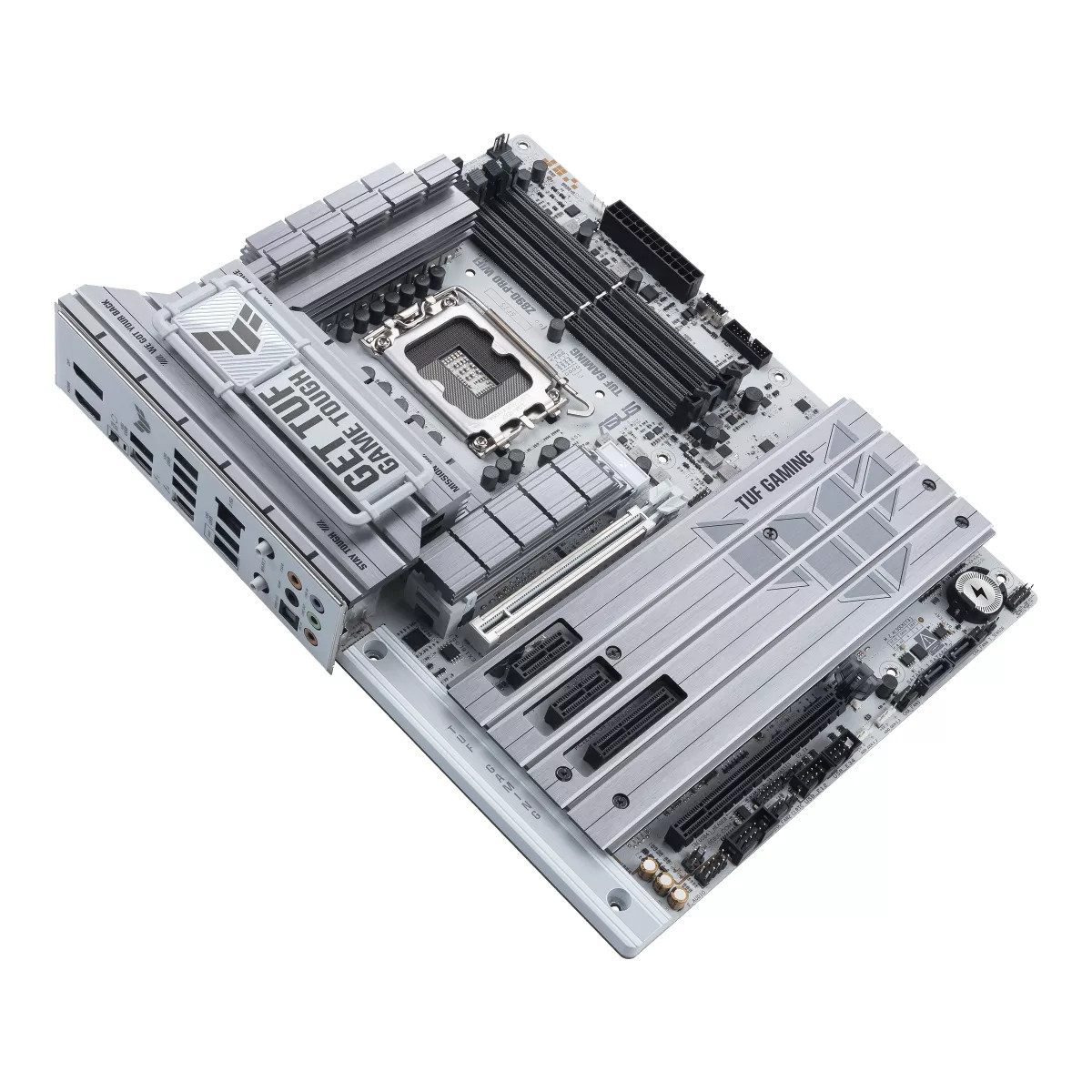

"Asus TUF Gaming Z890-Pro Wi-Fi DDR5 LGA1851 ATX Motherboard | 90MB1IR0-M0CAY0 The ASUS TUF Gaming Z890-Pro Wi-Fi motherboard is built for high-performance gaming systems using the latest Intel Core Ultra (Series 2) processors on the LGA1851 socket. Powered by the Intel Z890 chipset, it delivers advanced connectivity, strong power delivery, and durability with military-grade components typical of the TUF series. This ATX motherboard supports DDR5 memory up to 192 GB and high frequencies exceeding 8600 MT/s (OC) for next-generation performance. It also features PCIe 5.0 support for graphics cards and NVMe SSDs, enabling ultra-fast storage and GPU bandwidth for gaming and professional workloads. Connectivity includes Wi-Fi 7, Bluetooth, and 2.5 Gb Ethernet, ensuring fast networking for online gaming and streaming. The board also offers multiple M.2 slots, USB-C connectivity, and advanced cooling solutions to maintain stable performance during intensive workloads. Model: 90MB1IR0-M0CAY0 Chipset: Intel Z890 CPU Socket: LGA1851 CPU Support: Intel Core Ultra (Series 2) processors Form Factor: ATX Memory: 4 × DDR5 DIMM, up to 192 GB Memory Speed: Up to DDR5-8600+ (OC) Expansion Slots: 1 × PCIe 5.0 x16 1 × PCIe 4.0 x16 (x4 mode) Additional PCIe slots for expansion Storage: 4 × M.2 NVMe slots 4 × SATA 6Gb/s ports Networking: Wi-Fi 7 Intel 2.5 Gb Ethernet USB & Connectivity: Dual Thunderbolt 4 USB-C Multiple USB 3.2 ports Front-panel USB 20 Gbps Type-C Display Outputs: HDMI, DisplayPort Audio: 8-channel HD Audio Durable TUF military-grade components and VRM cooling"
Specifications
- Brand
- ASUS
- Model
- TUF Gaming Z890-Pro
- MPN
- 90MB1IR0-M0CAY0
- Chipset
- Intel Z890
- Socket
- LGA1851
- CPU
- Intel Core Ultra (Series 2) processors
- Form Factor
- ATX
- Memory
- 4 × DDR5 DIMM, up to 192 GB
- Memory Speed
- Up to DDR5-8600+ (OC)
- Expansion Slots
- 1 × PCIe 5.0 x16 1 × PCIe 4.0 x16 (x4 mode) Additional PCIe slots for expansion
- Storage
- 4 × M.2 NVMe slots 4 × SATA 6Gb/s ports
- Networking
- Wi-Fi 7 Intel 2.5 Gb Ethernet
- USB & Connectivity
- Dual Thunderbolt 4 USB-C Multiple USB 3.2 ports Front-panel USB 20 Gbps Type-C
- Display Outputs
- HDMI, DisplayPort
- Audio
- 8-channel HD Audio
