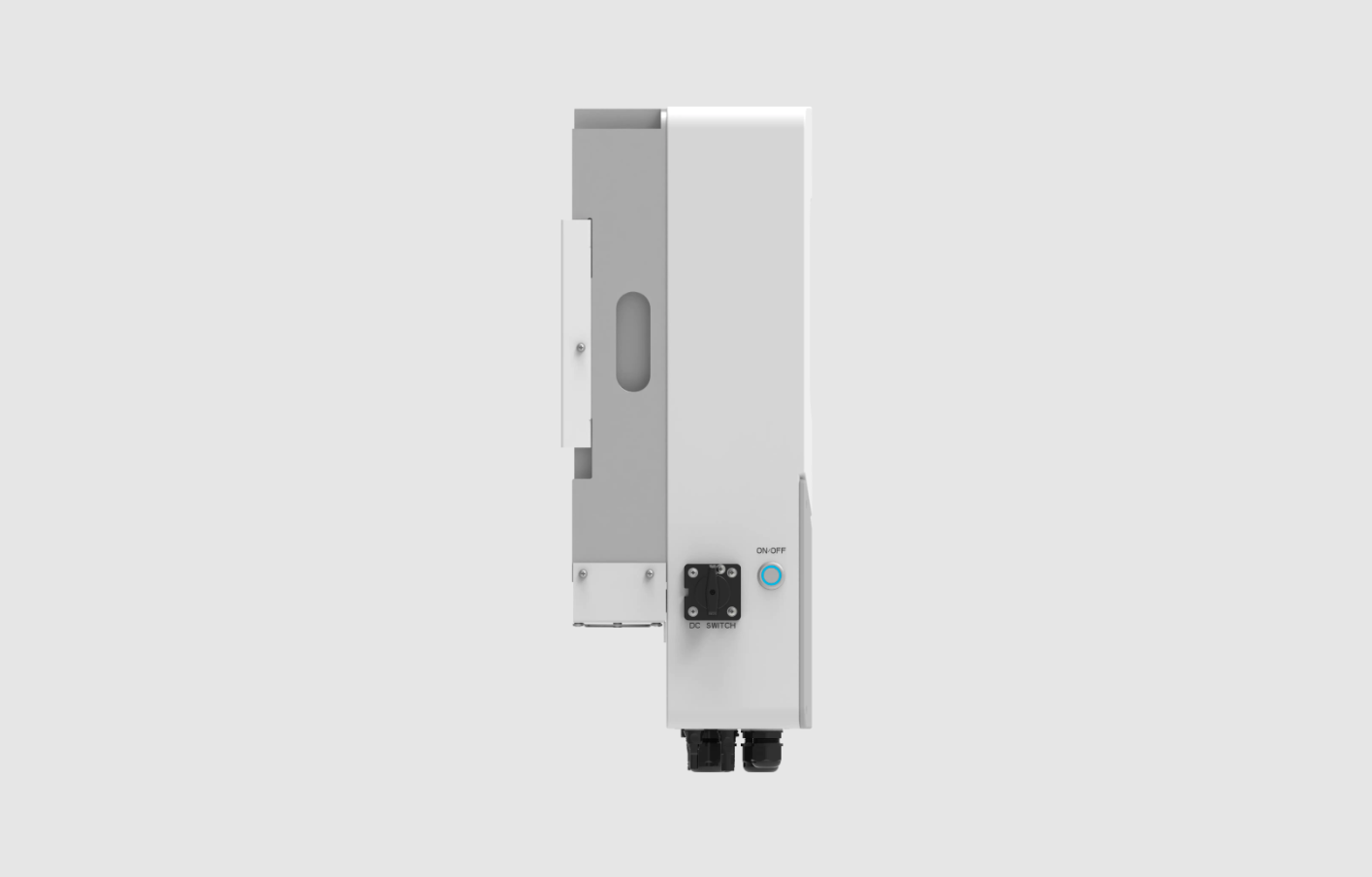

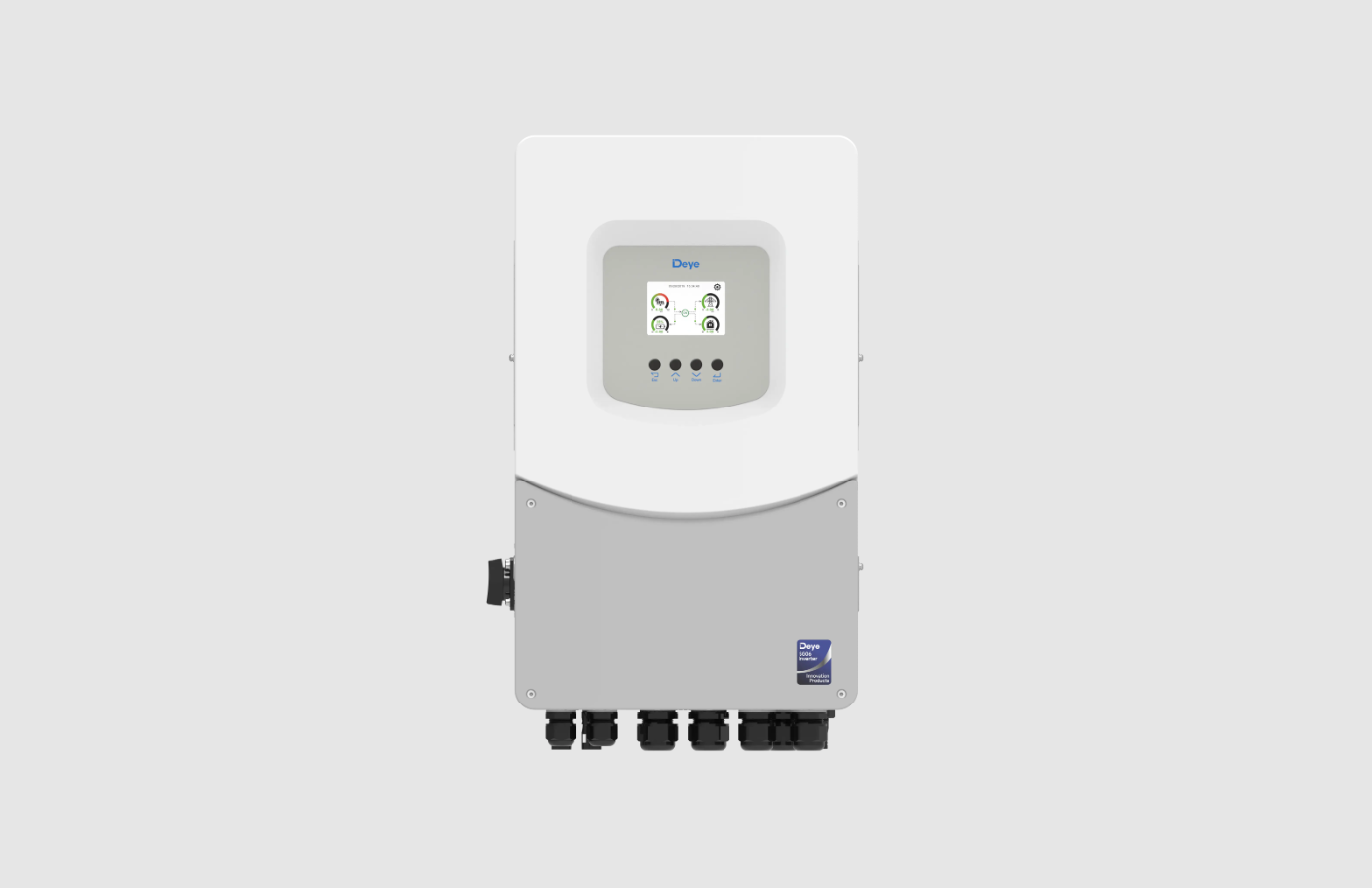

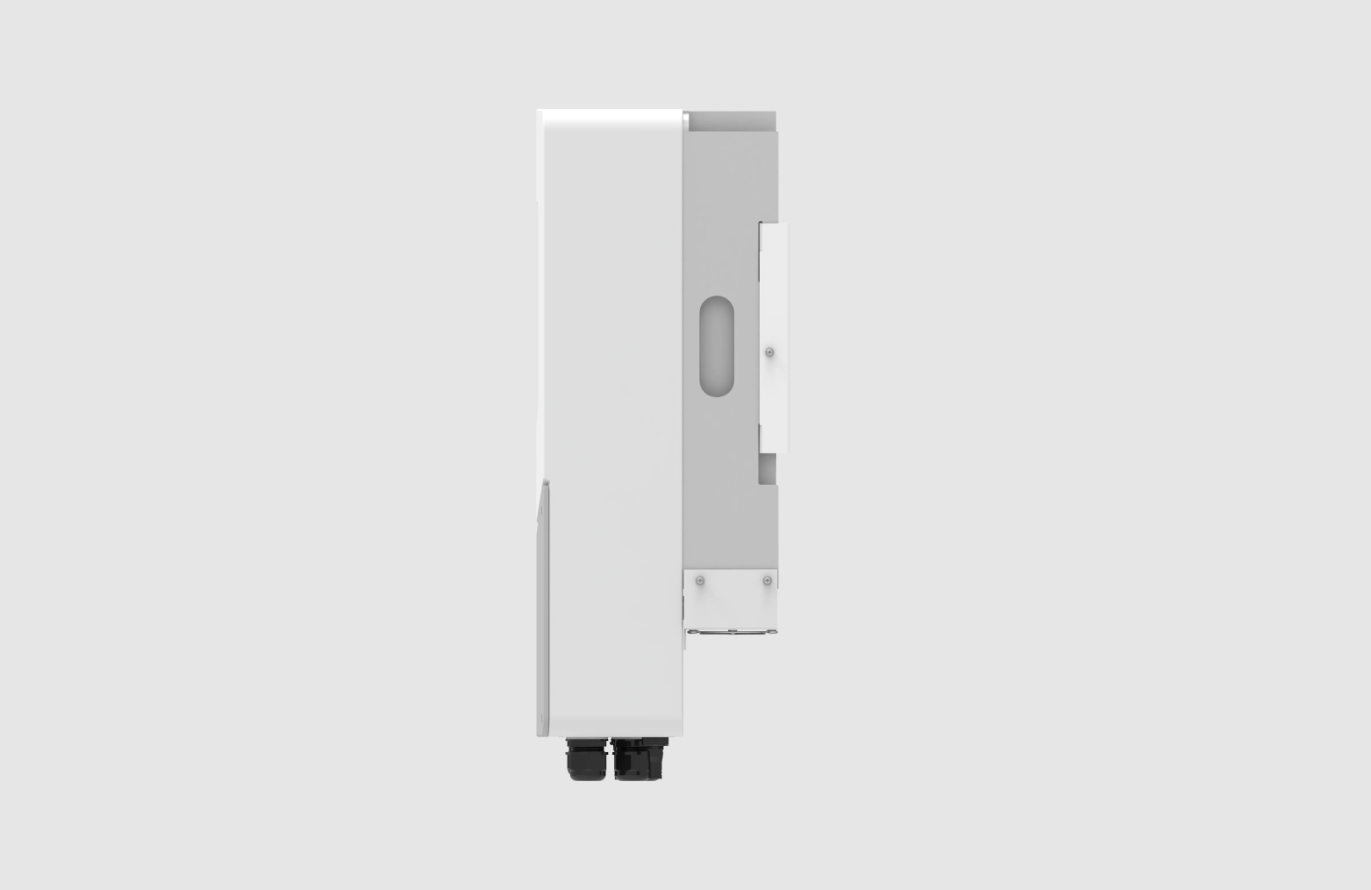

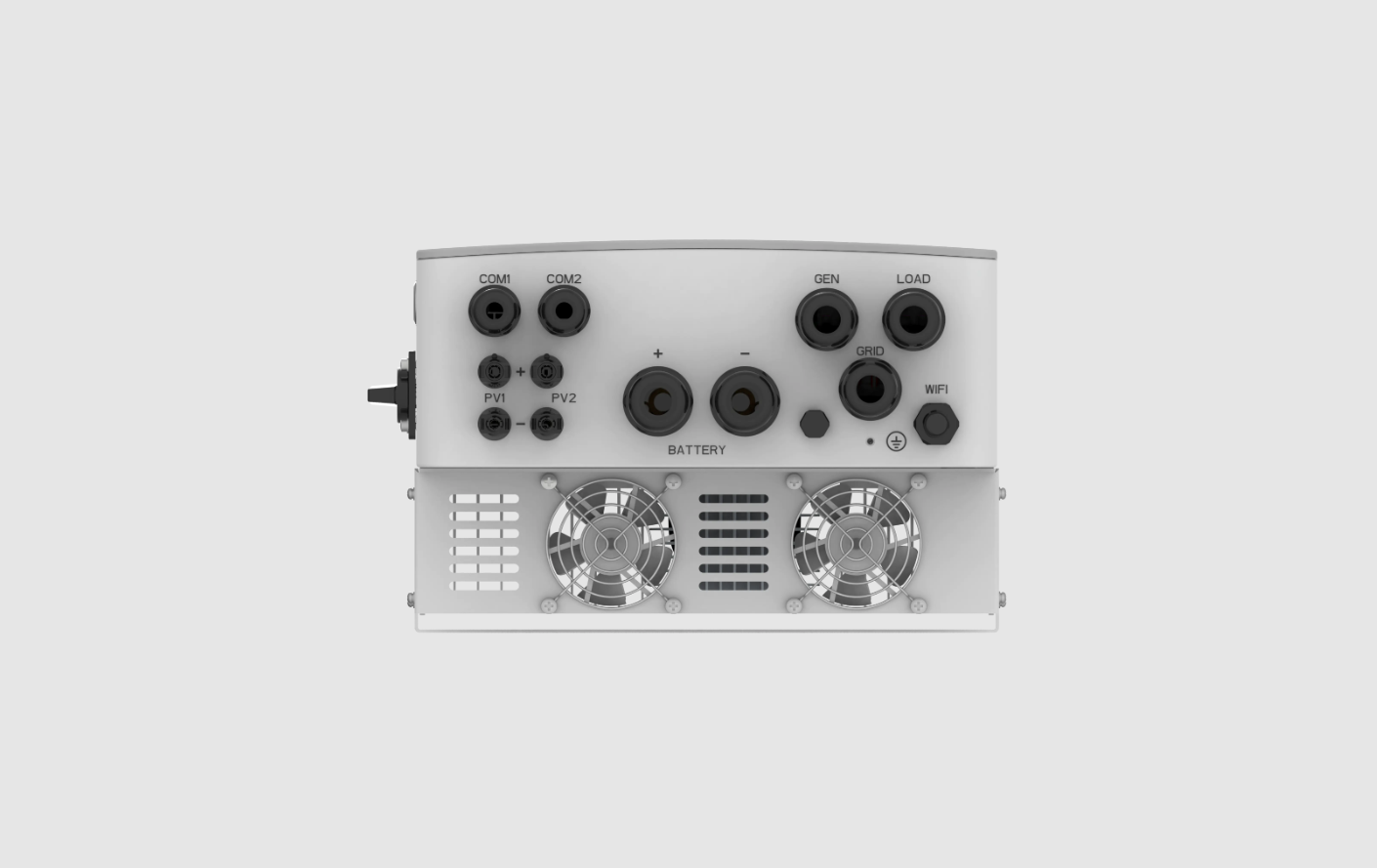

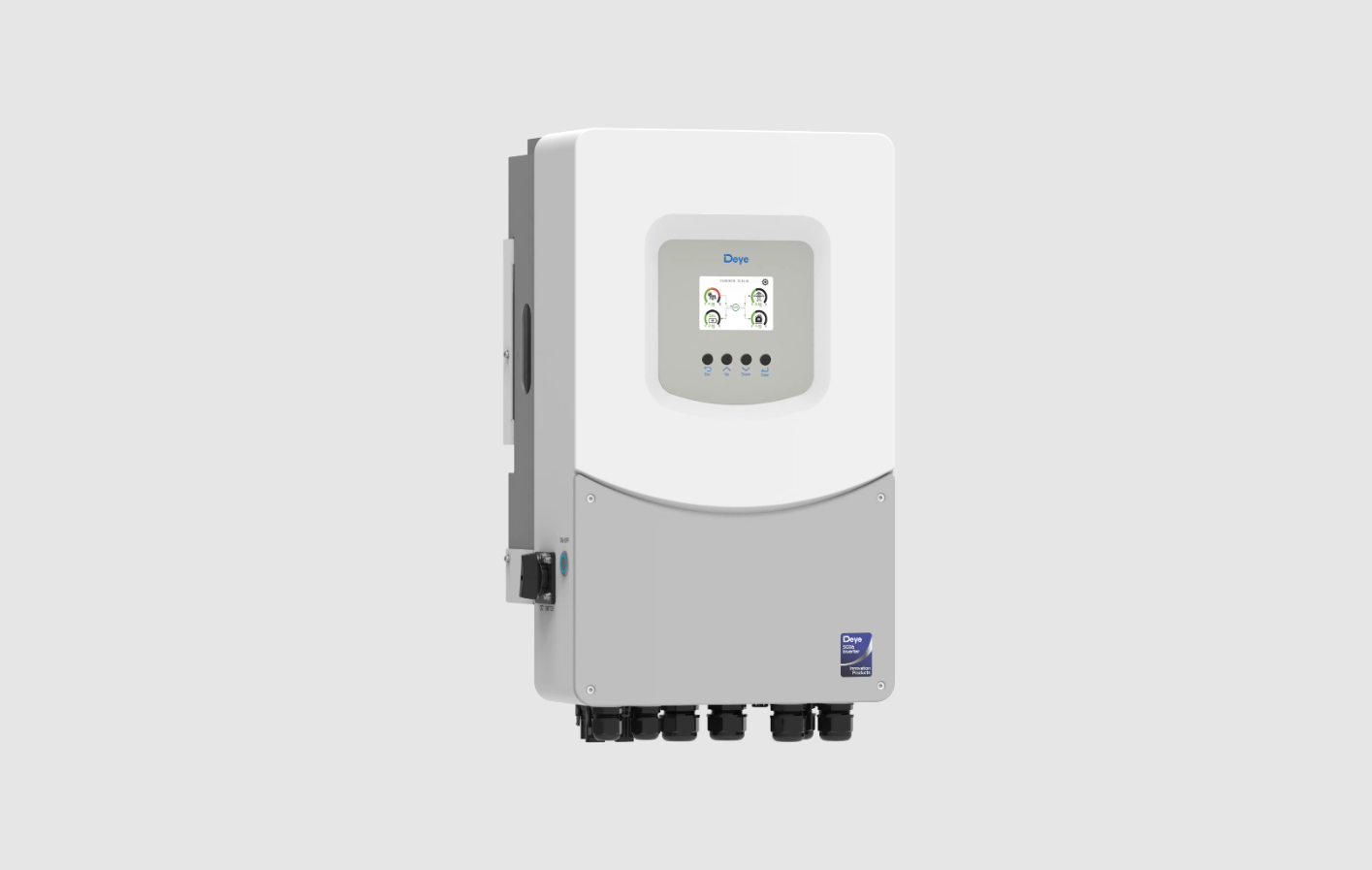

DEYE Three Phase Hybrid Inverter SUN-6K-SG06 LP3-EU-BM2

SUN-(3-8)K-SG06LP3-EU-BM2 Feedback Model SUN-3K-SG06 LP3-EU-BM2 SUN-4K-SG06 LP3-EU-BM2 SUN-5K-SG06 LP3-EU-BM2 SUN-6K-SG06 LP3-EU-BM2 SUN-8K-SG06 LP3-EU-BM2 Battery Input Data Battery Type Lead-acid or Lithium-ion Battery Voltage Range (V) 40-60 Max. Charging/Discharging Current (A) 70 95 120 135 190 Charging Strategy forLi-ion Battery Self-adaption to BMS Number of Battery Input 1 PV String Input Data Max. PV Access Power (W) 6000 8000 10000 12000 16000 Max. PV Input Power (W) 4800 6400 8000 9600 12800 Max. PV Input Voltage (V) 800 Start-up Voltage (V) 160 MPPT Voltage Range (V) 200-650 Rated PV Input Voltage (V) 550 Max. Operating PV Input Current (A) 20+20 Max. Input Short-Circuit Current (A) 30+30 No. of MPP Trackers/No. of Strings MPP Tracker 2/1+1 AC Input/Output Data Rated AC Input/Output Active Power (W) 3000 4000 5000 6000 8000 Max. AC Input/Output Apparent Power (VA) 3300 4400 5500 6600 8800 Rated AC Input/Output Current (A) 4.6/4.4 6.1/5.8 7.6/7.3 9.1/8.7 12.2/11.6 Max. AC Input/Output Current (A) 5/4.8 6.7/6.4 8.4/8 10/9.6 13.4/12.8 Max. Continuous AC Passthrough (grid to load) (A) 45 Peak Power (off-grid) (W) 2 times of rated power, 10s Power Factor Adjustment Range 0.8 leading to 0.8 lagging Rated Input/Output Voltage 220/380V, 230/400V 0.85Un-1.1Un 3L+N+PE Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65 Total Current Harmonic Distortion THDi <3% (of nominal power) DC Injection Current <0.5% In Efficiency Max. Efficiency 97.6% Euro Efficiency 97.0% MPPT Efficiency >99% Equipment Protection Integrated DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection Surge Protection Level TYPE II(DC),TYPE II(AC) Interface LCD/LED Display LCD Communication Interface WIFI,RS485,CAN General Data Operating Temperature Range (℃) -40 to +60℃, >45℃ Derating Permissible Ambient Humidity 0-100% Permissible Altitude 3000m Noise (dB) ≤45 Ingress Protection(IP) Rating IP 65 Inverter Topology Non-Isolated (solar), Isolated (battery) Over Voltage Category OVC II(DC), OVC III(AC) Cabinet Size (WxHxD mm) 334×545×220 (Excluding Connectors and Brackets) Weight (kg) 20.8 21.9 Type of Cooling Intelligent Air Cooling Warranty 5 Years / Up to 10 Years* *Warranty period varies by installation country. Refer to the Warranty Policy for details. Grid Regulation IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25,G99,VDE-AR-N 4105 Safety / EMC Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
