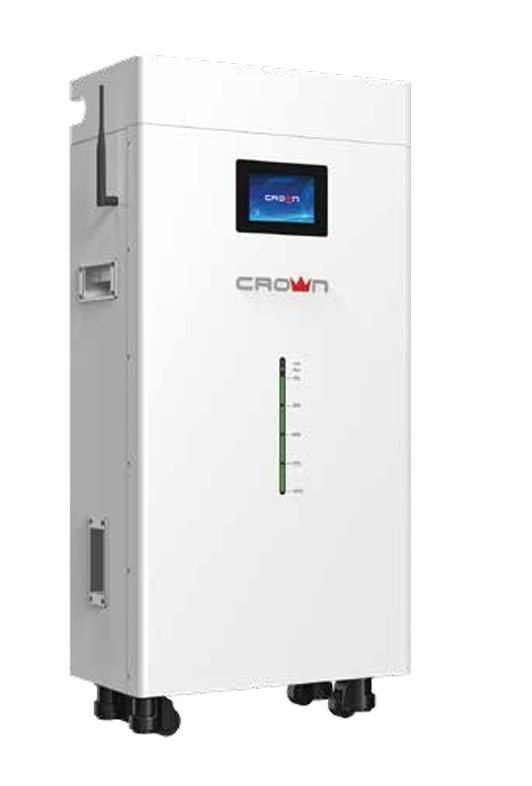

CROWN 16K LITHIUM-ION Battery CMLB-51.2-314

-GRADE A LiFePO4 Cells, > 10000 Cycles @ 80% DoD, 0.5C @ 25ºC -Parallel Up to 64 Pieces -Supports CAN/RS485, Compatible with Major Inverter Brands - WiFi & Bluetooth for Real Time Monitoring - Fire-redundant Wiring and Laser Welding for Enhanced Safety -Built-in Smart BMS with Multi-Protection (OVP, ODP, OTP, SCP) MODEL NAME CMLB-51.2-314 Rated Voltage （V） 51.2 Rated Capacity （Ah） 314 Rated Energy （Wh） 16077 OPERATION PARAMETER Voltage Range （V） 44.8-57.0 Charge Voltage Range（V）56.0-57.0 Cut-off Voltage （V） 44.8 Recommend Charge Current 100 Max Charge Current (A) 200 Max Discharge Current (A) 200 PHYSICAL PARAMETER Dimension ：W*D*H（mm）460*895*245 Weight（kg）128Kg Communication Port RS485,CAN Display LED+LCD Terminal OT terminal ENVIRONMENT PARAMETER Humidity（% ） 5-95% RH Charge Temperature Range （℃） 0-50 Discharge Temperature Range （℃） -20-55 Storage Temperature Range （℃） -20-55 SERVICE LIFE0-20-55-20-55 Cycle Life ＞10000 （0.5C @ 25℃，80% DOD） Design Life (Year) 15
