SUNON cooling fan DP200A

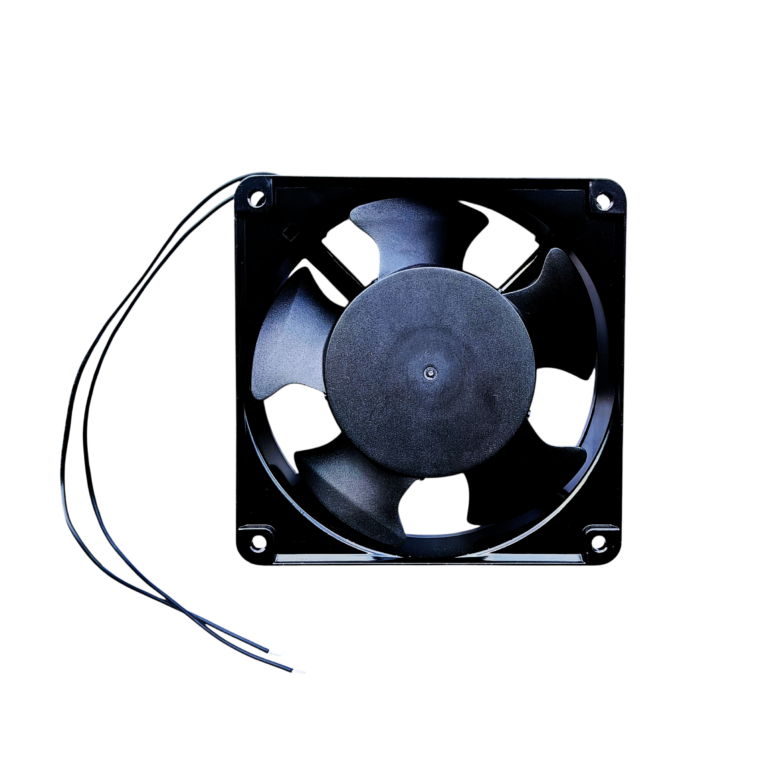

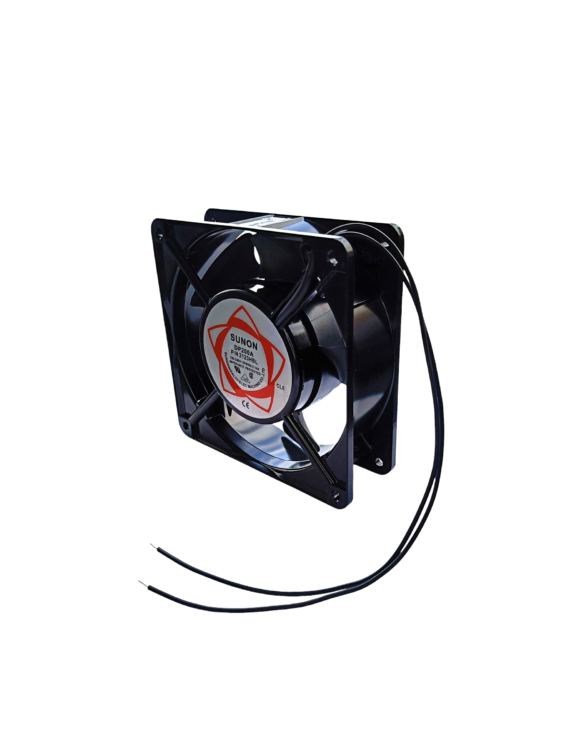

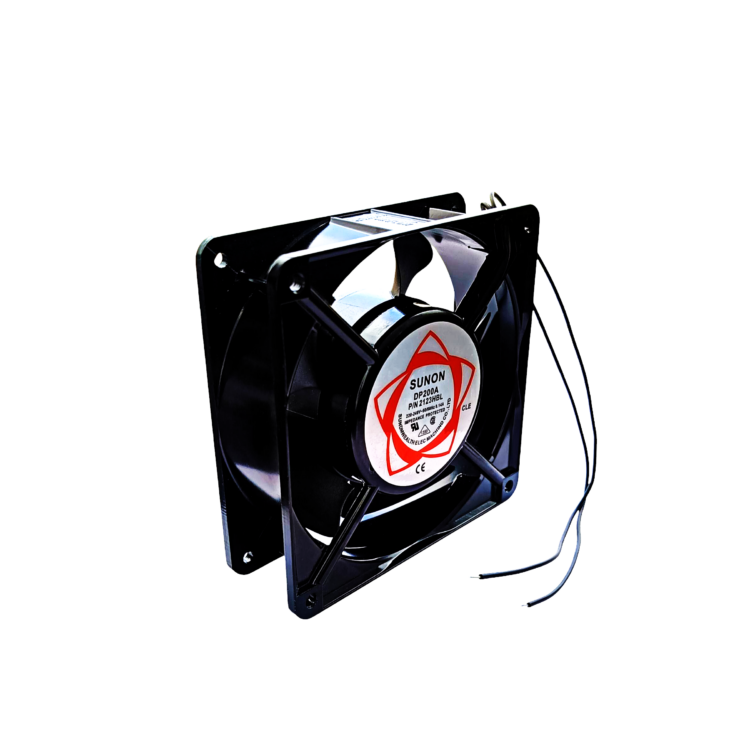

SUNON DP200A 2123HBL 220VAC 0.14A is an AC axial fan measuring 120x120x38mm. It operates on 220-240 VAC at 50/60 Hz frequencies, drawing 0.14 A of current, with a power consumption typically ranging from 29 W to 31 W. This fan achieves a speed between 2700 RPM and 3100 RPM, providing an airflow of 2.68 to 3.25 m³/min (approximately 95 to 115 CFM). The noise level is typically between 43 dB(A) and 46 dB(A). It commonly features ball bearings for a longer lifespan and reliable operation. The frame is often made of die-cast aluminum alloy, and the blades are made from PBT + glass fiber flame retardant material. It connects via 2-wire Leads. This fan is widely used for cooling in various electronic equipment, industrial machinery, and control cabinets. Specifications of SUNON DP200A 2123HBL 220VAC 0.14A • Model: DP200A P/N 2123HBL • Manufacturer: SUNON • Type: AC Axial Fan • Dimensions: 120x120x38 mm • Rated Voltage: 220-240 VAC • Frequency: 50 Hz / 60 Hz • Rated Current: 0.14 A • Power Consumption: 29 W – 31 W • Speed: 2700-3100 RPM • Airflow: 2.68-3.25 m³/min (95-115 CFM) • Noise Level: 43-46 dB(A) • Bearing Type: Ball Bearing • Termination: 2-wire Leads • Material Frame: Die-cast aluminum alloy • Material Blade: Plastic (PBT + 30% Glass + VO grade flame retardant) • Operating Temperature: -40 to 70°C (for ball bearing models) • Expected Life: 60000 Hrs (at 40°C for ball bearing models)
