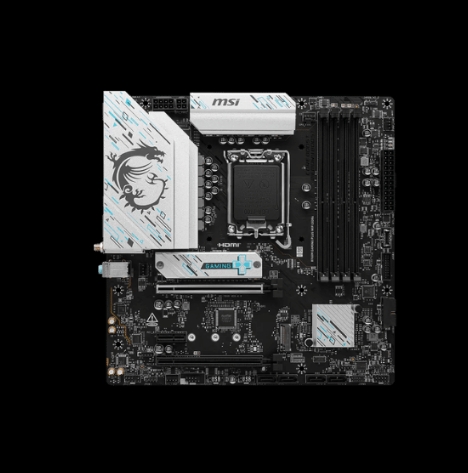

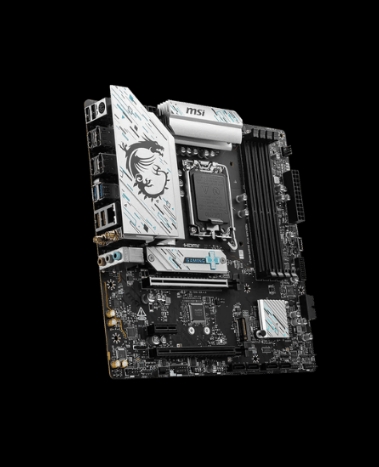

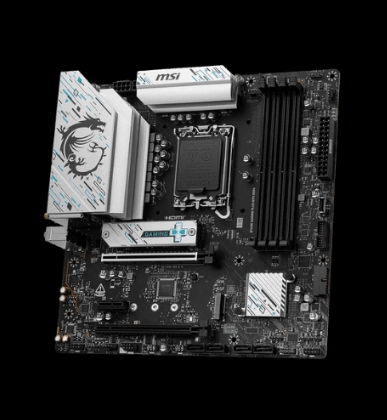

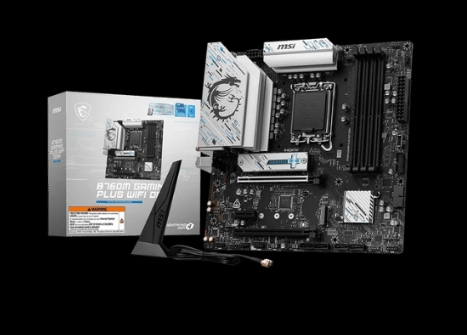

MSI B760M GAMING PLUS WIFI DDR4 Gaming Motherboard
MSI B760M GAMING PLUS WIFI DDR4 Gaming Motherboard FEATURES: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket Supports DDR4 Memory, up to 5333+(OC) MHz Enhanced Power Design: 12+1+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection High Quality PCB: 6-layer PCB made by 2oz thickened copper Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
المواصفات
- Brand
- MSI
- Type
- GAMING MOTHERBOARD
- Model
- B760M GAMING
- CPU
- Intel Core 14th/ 13th/ 12th Gen Processors
- Intel Pentium Gold and Celeron Processors LGA 1700
- Intel Pentium Gold and Celeron Processors LGA 1700
- 4x DDR4
- 4x DDR4
- Maximum Memory Capacity 128GB
- Maximum Memory Capacity 128GB
- Max. overclocking frequency:
- 1DPC 1R Max speed up to 5333+ MHz
- 1DPC 2R Max speed up to 4800+ MHz
- 1DPC 2R Max speed up to 4800+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHzSupports Intel® XMP 3.0 OC
- 2DPC 2R Max speed up to 4000+ MHzSupports Intel® XMP 3.0 OC
- Supports Dual-Controller Dual-Channel mode
- Supports Dual-Controller Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports non-ECC, un-buffered memory
