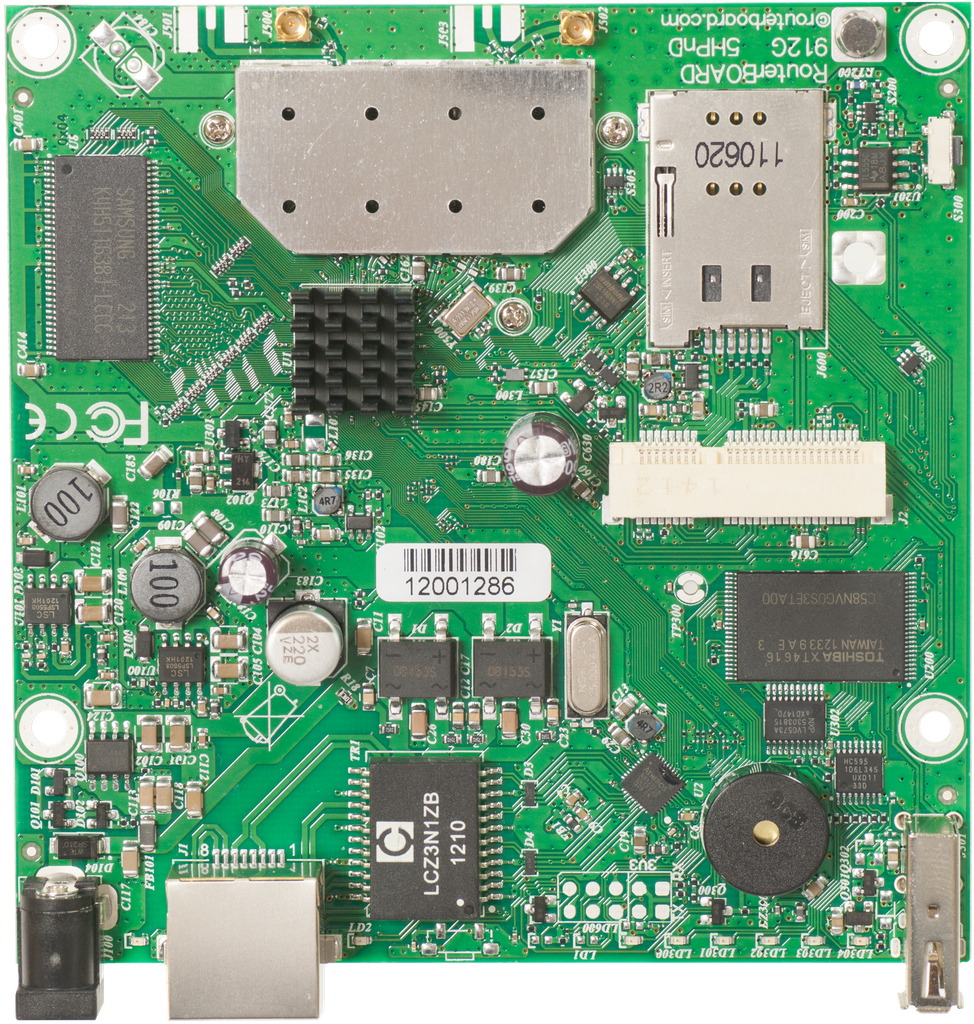

MIKROTIK Router Board RB912UAG-5HPnD-02

600MHz CPU, 64MB RAM, 1xGigabit Ethernet, onboard 5Ghz wireless, miniPCI-express, USB, SIM slot, RouterOS L4 Specifications Details Product code RB912UAG-5HPnD Architecture MIPSBE CPU AR9342 CPU core count 1 CPU nominal frequency 600 MHz Dimensions 105x105mm RouterOS license 4 Operating System RouterOS Size of RAM 64 MB Storage size 128 MB Storage type NAND MTBF Approximately 100'000 hours at 25C Tested ambient temperature -40°C to 70°C Suggested price $79.00 Powering Details Number of DC inputs 2 (PoE-IN, DC jack) DC jack input Voltage 8-30 V Max power consumption 12 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 8-30 V Wireless specifications Details Wireless 5 GHz Max data rate 300 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n Wireless 5 GHz chip model AR9342 Wireless 5 GHz generation Wi-Fi 4 Ethernet Details 10/100/1000 Ethernet ports 1 Peripherals Details Number of SIM slots 1 Modem (Mini SIM) MiniPCI-e slots 1 Number of USB ports 1 USB Power Reset Yes USB slot type USB type A Max USB current (A) 1 Other Details PCB temperature monitor Yes Voltage Monitor Yes Beeper Yes Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS IP IP00 Wireless specifications 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 30 -96 54MBit/s 27 -78 MCS0 30 -96 MCS7 26 -75
