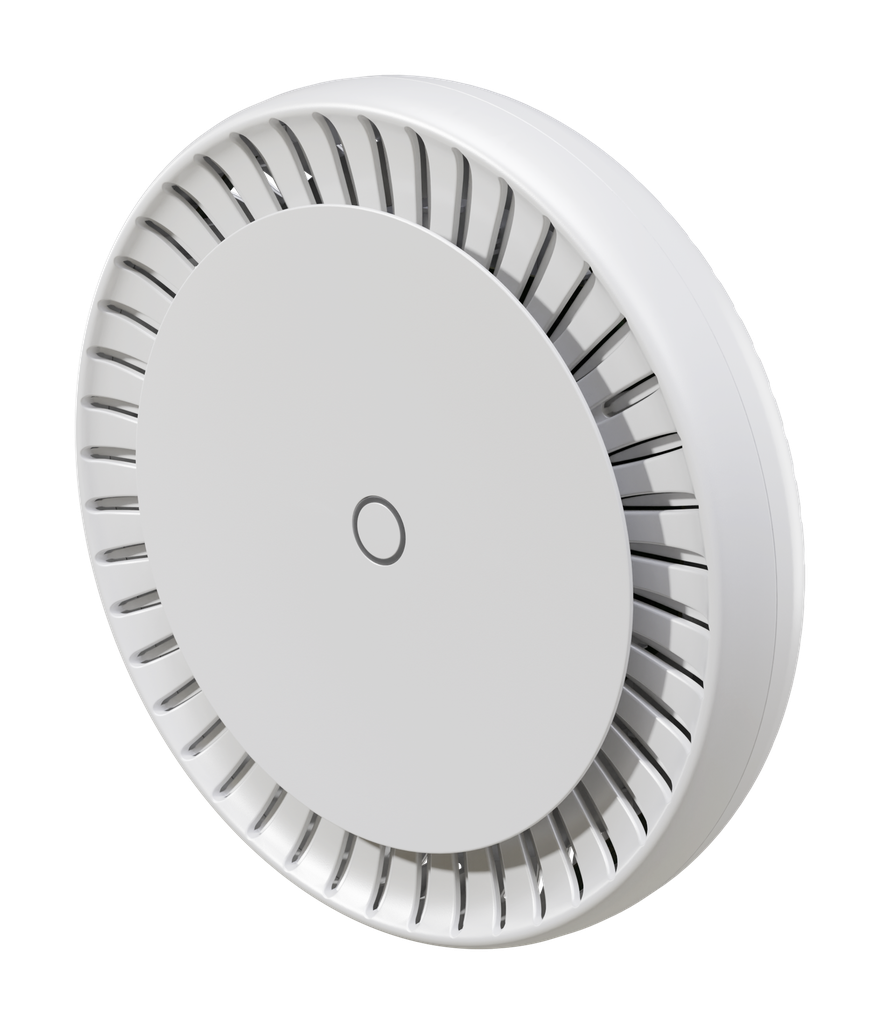

MIKROTIK cAP ax cAPGi-5HaxD2HaxD cAP ax cAPGi-5HaxD2HaxD

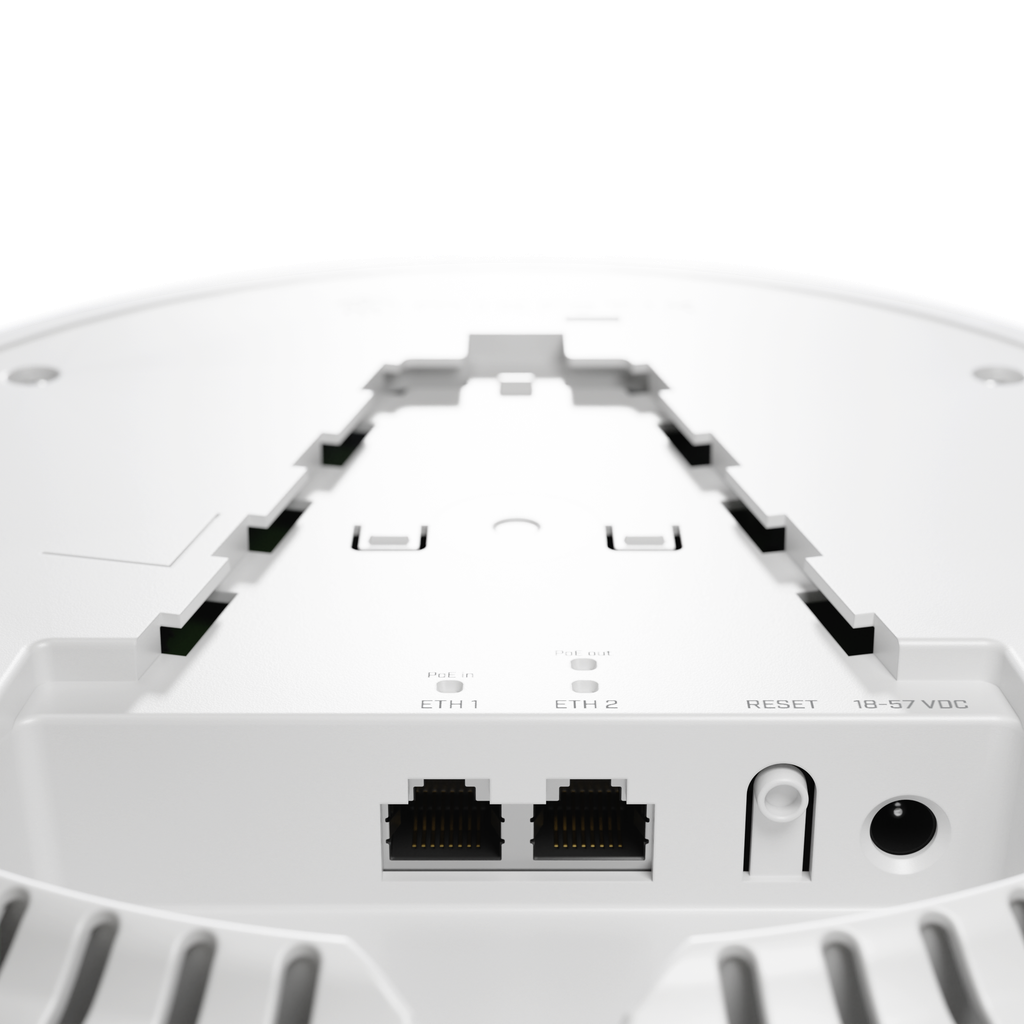

MikroTik cAP ax cAPGi-5HaxD2HaxD Specifications Details Product code cAPGi-5HaxD2HaxD Architecture ARM 64bit CPU IPQ-6010 CPU core count 4 CPU nominal frequency auto (864 - 1800) MHz Switch chip model IPQ-6010 RouterOS license 4 Operating System RouterOS v7 Size of RAM 1 GB Storage size 128 MB Storage type NAND MTBF Approximately 200'000 hours at 25C Tested ambient temperature -40°C to 70°C IPsec hardware acceleration Yes Wireless capabilities Details Wireless 2.4 GHz Max data rate 574 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n/ax Antenna gain dBi for 2.4 GHz 6 Wireless 2.4 GHz chip model QCN-5022 Wireless 2.4 GHz generation Wi-Fi 6 Wireless 5 GHz Max data rate 1200 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n/ac/ax Antenna gain dBi for 5 GHz 5.5 Wireless 5 GHz chip model QCN-5052 Wireless 5 GHz generation Wi-Fi 6 WiFi speed AX1800 Ethernet Details 10/100/1000 Ethernet ports 2 Number of 1G Ethernet ports with PoE-out 1 Powering Details Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 18-57 V Max power consumption 36 W Max power consumption without attachments 11 W Cooling type Passive PoE in 802.3af/at PoE in input Voltage 18-57 V PoE-out Details PoE-out ports Ether2 PoE out Passive PoE up to 57V Max out per port output (input 18-30 V) 600 mA Max out per port output (input 30-57 V) 400 mA Max total out (A) 600 mA Total output current 0.4 Total output power 19.2
