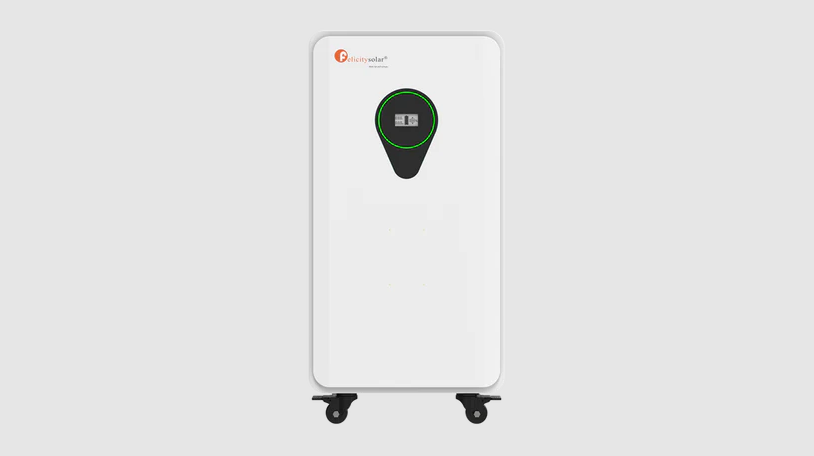

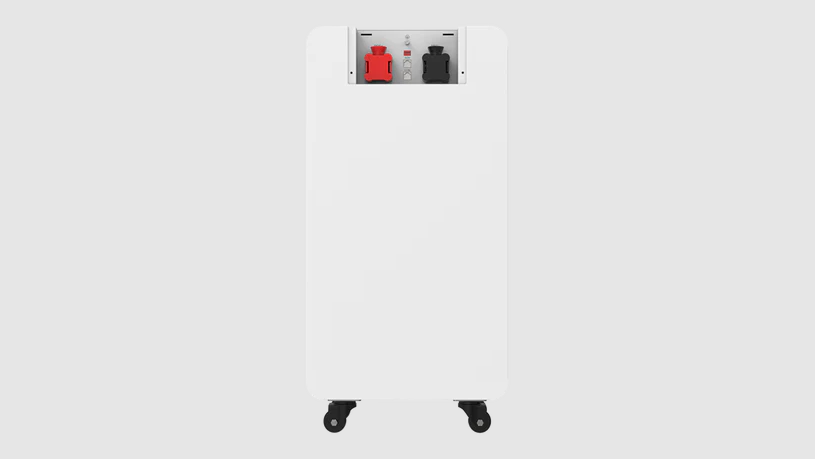

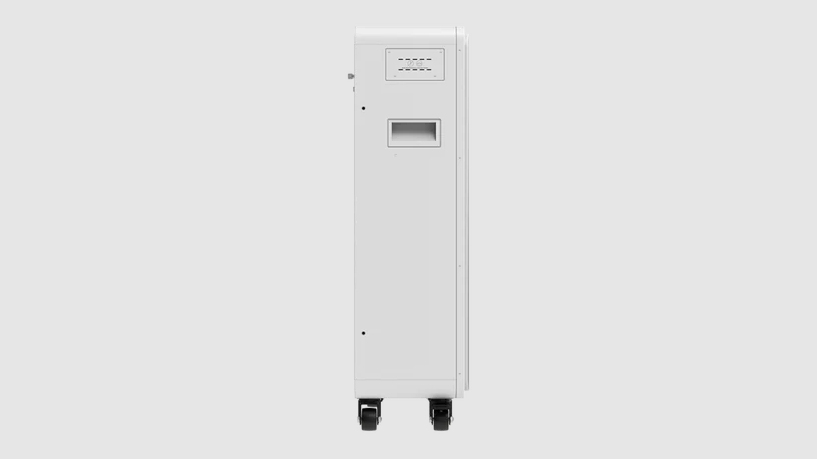

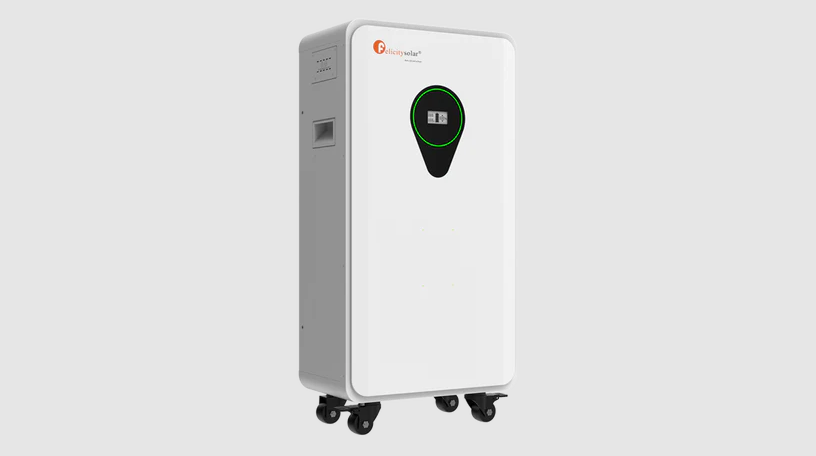

FELICITY Lithium Battery 17.5KWh 51.2V 350AH FLA48350TG2
battery Type LIFePo4 Nominal Energy 17.5KWH Nominal Voltage 51.2V Operating Voltage 44.8-57.6V Max Continuous Charge / Discharge Current [1] 175 A Peak Charge / Discharge Current (15s) 300A Max Charge / Discharge Power 8750W Scalability Max 15 pcs in Parallel (262.5KWH) Depth of Discharge (DOD) ≥ 95% Communication RS485/CAN Protection Degree IP21 Cycle Life ≥8000 cycles(25℃+-2℃,0.5C/0.5C,90%DOD,70%EOL) Charging Temperature Range -20 ℃-+55℃ Display Type LCD + LED Installation Floor - Mounted Protection Built- in Smart BMS ,Breaker ,Fuse
المواصفات
- battery Type
- LIFePo4
- Nominal Energy
- 17.5KWH
- Nominal Voltage
- 51.2V
- Operating Voltage
- 44.8-57.6V
- Max Continuous Charge / Discharge Current [1]
- 175 A
- Peak Charge / Discharge Current (15s)
- 300A
- Max Charge / Discharge Power
- 8750W
- Scalability
- Max 15 pcs in Parallel (262.5KWH)
- Depth of Discharge (DOD)
- ≥ 95%
- Communication
- RS485/CAN
- Protection Degree
- IP21
- Cycle Life
- ≥8000 cycles(25℃+-2℃,0.5C/0.5C,90%DOD,70%EOL)
- Charging Temperature Range
- -20 ℃-+55℃
- Display Type
- LCD + LED
- Installation
- Floor - Mounted
- Protection
- Built- in Smart BMS ,Breaker ,Fuse
