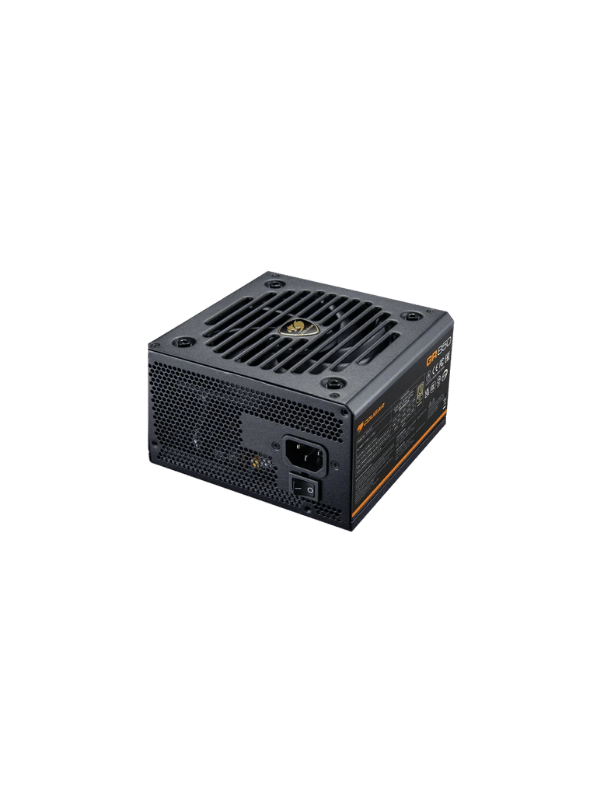

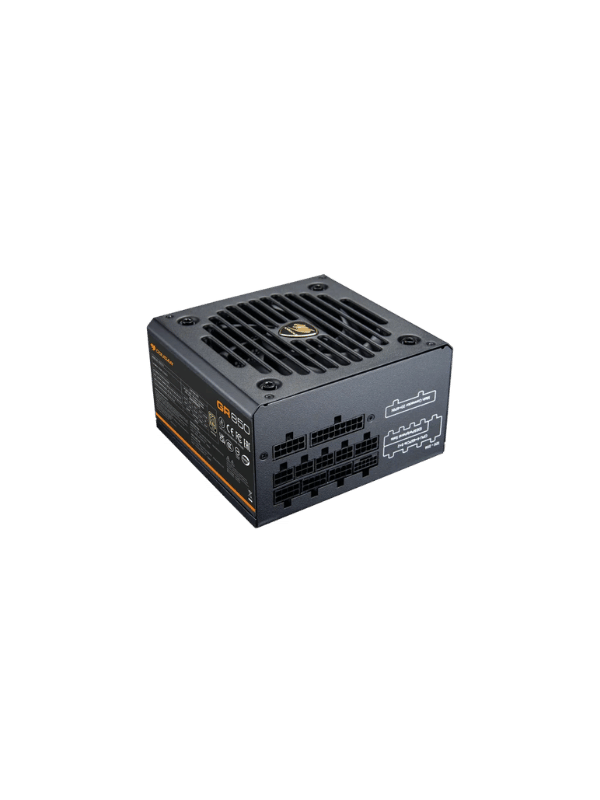

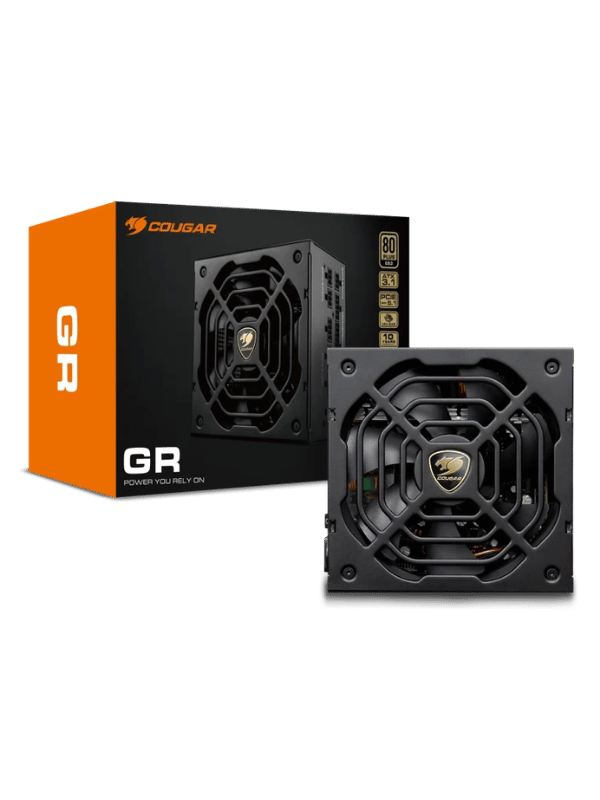

COUGAR Power Supply GR 850W, 80 PLUS Gold Fully Modular ATX

COUGAR GR 850W 80 PLUS Gold Fully Modular ATX Power Supply Features: Supports PCI Express 5.1 Graphics Cards with 12+4 Pin Connector for true 200% power excursion dynamic outputs. 80 PLUS Gold Certified for up to 91% efficiency in power conversion, reducing electricity bills. Groundbreaking grooved blade, rifle bearing fan design lets you experience noiseless gaming. 105°C Japanese capacitor for main power. Designed for current and next-generation multi-core CPU platforms, is compatible with the latest PC technology. Powerful performance even at 40°C ambient temperature. Platinum Cybenetics rating for efficiency (850W only) A- Cybenetics rating for noise level. (850W only) SPECIFICATIONS: Model Name AC Input DC output +3.3V +5V +12V -12V +5Vsb Total GR 850 CGR GDN-850 AC100-240V~ 50-60Hz 10A Max. 20A 20A 70.8A 0.3A 3A 850W 100W 849.6W 3.6W 15W Total Connectors Connector Main CPU Peripheral S-ATA 12V-2X6 PCI-E Pins 24(20+4) 8(4+4) – – 12+4 8(6+2) GR 850 1 2 2 6 1 3
