COUGAR Power Supply GR 1000W 80 PLUS Gold Fully Modular ATX

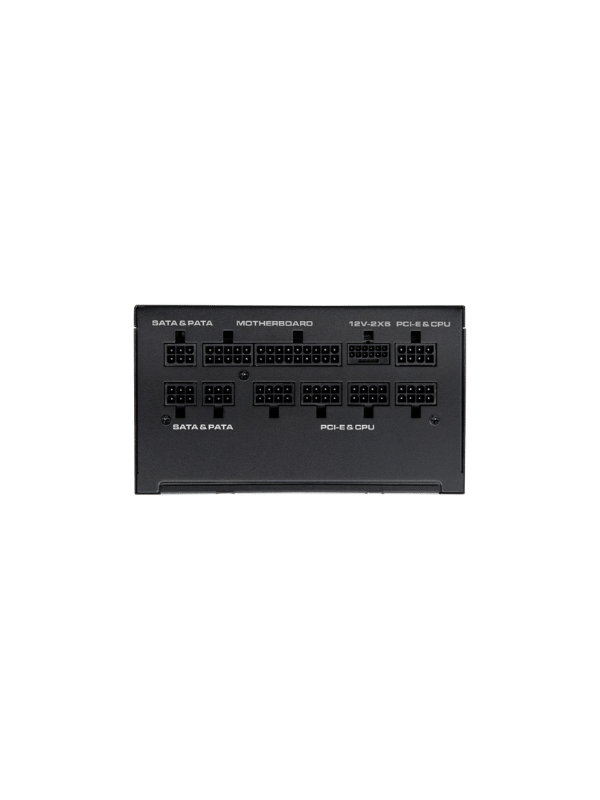

COUGAR GR 1000W 80 PLUS Gold Fully Modular ATX Power Supply Features: Supports PCI Express 5.1 Graphics Cards with 12+4 Pin Connector for true 200% power excursion dynamic outputs. 80 PLUS Gold Certified for up to 91% efficiency in power conversion, reducing electricity bills. Durable Fluid Dynamic Bearing Fan lets you experience noiseless gaming. 100% Refined Japanese Capacitors for outstanding component longevity in the PSU. Designed for current and next-generation multi-core CPU platforms, compatible with the latest PC technology. Powerful performance even at 40°C ambient temperature. Full Protections with UVP, OCP, SCP, OTP, OVP, OPP Platinum Cybenetics rating for efficiency (1000W only) A+ Cybenetics rating for noise level. (1000W only) SPECIFICATIONS: Product Name AC Input DC output +3.3V +5V +12V -12V +5Vsb Total GR 1000 100-240VAC 15-8A 50-60Hz 20A 20A 83.3A 0.4A 3A 1000W 100W 999.6W 4.8W 15W Total Connectors Product Name Main 24 Pin CPU 4+4 Pin Peripheral S-ATA 12V-2X6 12+4 Pin PCI-E 6+2 Pin GR 1000 1 2 3 9 1 3 Product Name GR 1000 Model No. CGR GDN-1000 ATX Version ATX3.1 PFC Active PFC Input Voltage 100-240VAC Input Current 15-8A Input Frequency 50-60Hz Dimensions (LxWxH) 150 x 150 x 86mm Fan Size 140mm Fan Bearing Fluid Dynamic Bearing Fan Speed 1900RPM 80 PLUS Rating 80 PLUS Gold Operating Temperature 40℃ MTBF >100,000 hours @ 25℃ Protections OCP / OVP / SCP / OTP / OPP / UVP Regulatory CB/CCC/FCC/TUV/cTUVus/EAC/CE
